Brightness sensor
HD-S107
V3.0 20210703
HD-S107 is a brightness sensor, which is connected to the LED display control system, so that the brightness of the LED display changes with the brightness of the surrounding environment.
|
parameter list |
|
|
Working temperature |
-25~85℃ |
|
Brightness range |
1%~100% |
|
Sensitivity-highmediumlow |
Get data once in 5s10s15s |
|
Standard wiring length |
1500mm |

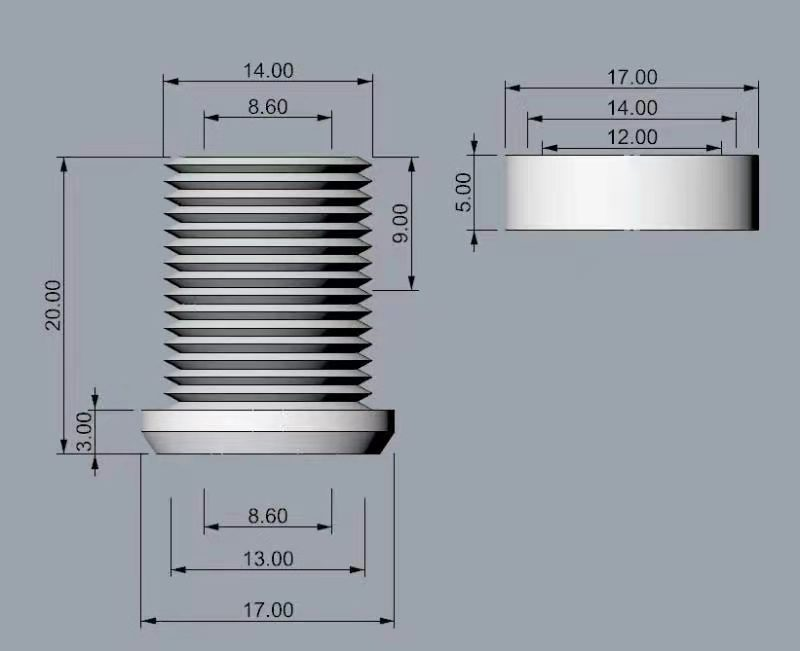

Installation Notes：

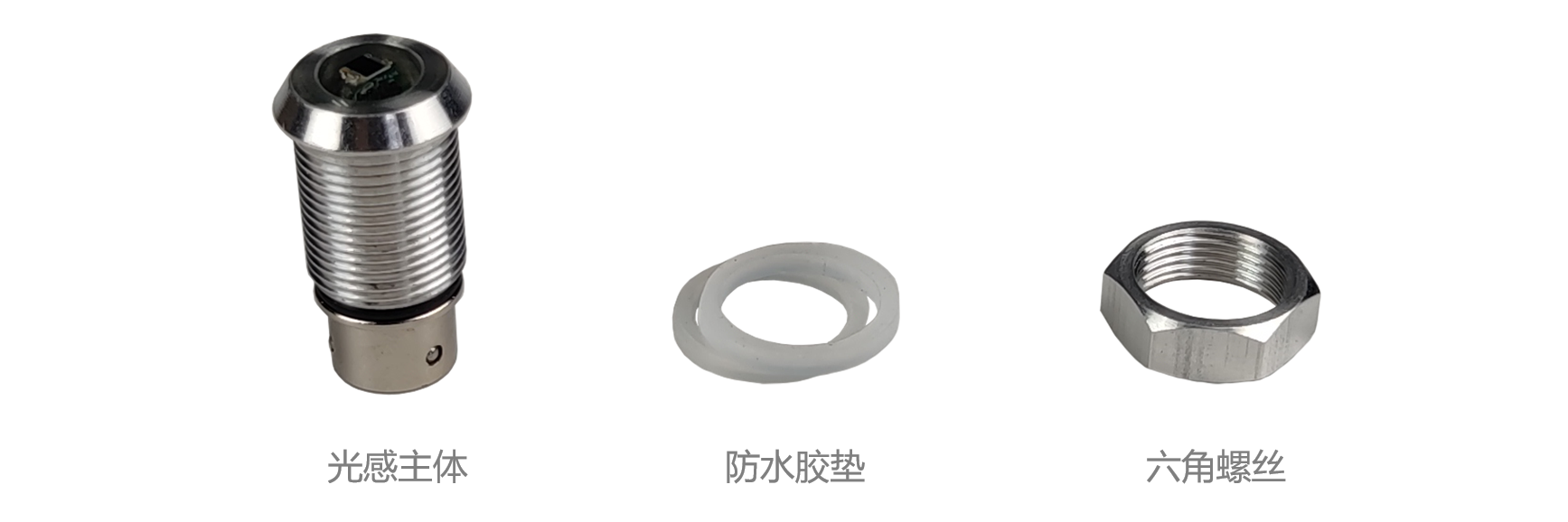

1.Remove the washer, nut and connecting wire from S107；

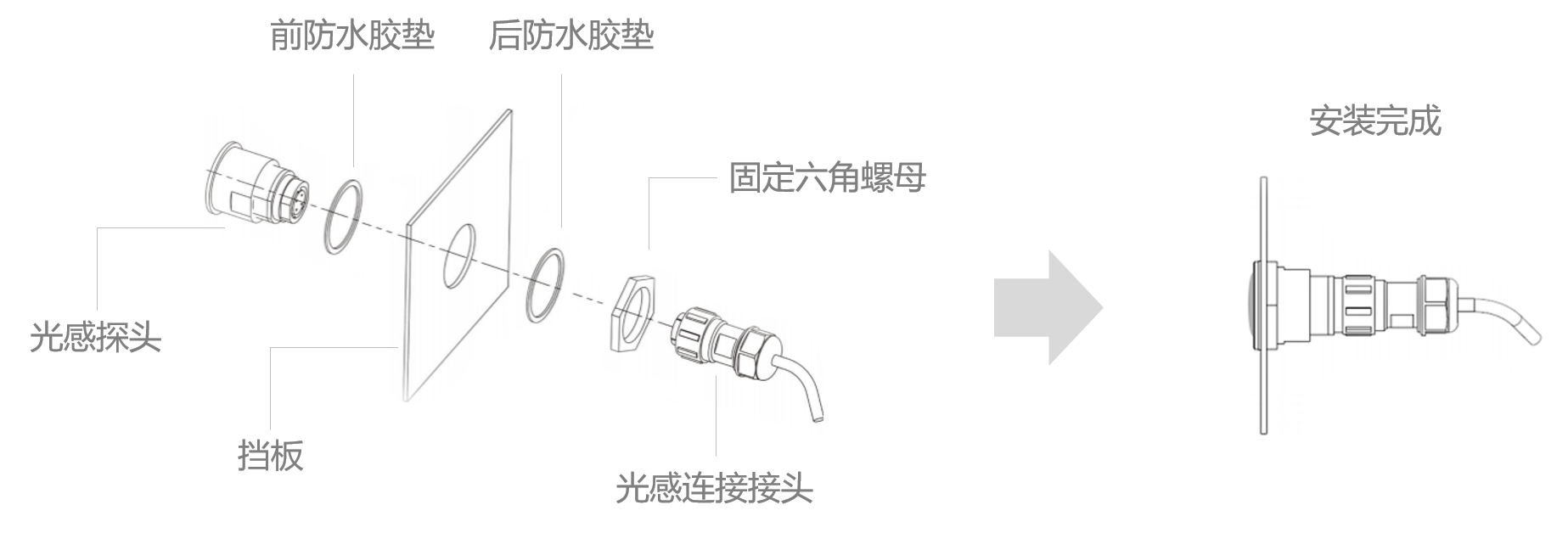

2.Before installing the waterproof rubber gasket, put the light sensor probe into the fixed installation hole opened in the box, and screw the rubber ring and nut in turn；
3.Install the connecting line: connect the one end of the wiring with aviation head XS10JK-4P/Y female connector and the aviation connector XS10JK-4P/Y- male connector on S107 (note: the interface has a foolproof bayonet design, please align it and insert it)；
4.Connect the other end of the cable to the sensor of the playback box or control card to connect it correctly.
